3. Context

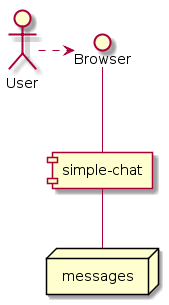

3.1 Business Context

This shows the interfaces to neighbours. simple-chat did not use external services from third parties. So the interfaces are the webbrowser used to access the website and the database connection.

Business Context

User

Will use the chat system and wants to chat with other Users.

Browser

A HTML5 compatible Browser which will render the website hosted by simple-chat.

messages

A storage for the chat messages so Users can view a history of old messages or even receive offline messages.

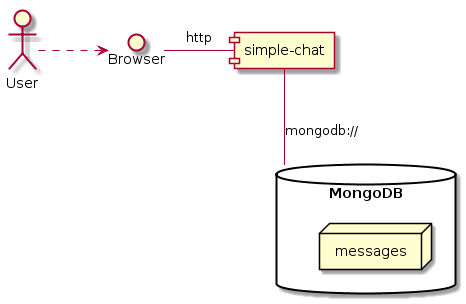

3.2 Technical Context

Technical Context

Browser

simple-chat and the browser will communicate over http protocol and will exchange messages in plain text and JSON format.

Database

The database will be accessed via JPA to be easily replace the database and to avoid writing and own database layer.
